Radionode RN320 LoRaWAN Sensor Integration Guide with Thingsboard Platform

Introduction

This guide explains how to connect the RN-320 sensor series to the Thingsboard platform.

The Radionode RN320 series is a robust, battery-operated wireless environmental sensor, professionally engineered for durability and extreme longevity, boasting an unbelievable 10-year battery life (RN320-BTH model with 17,000mAh) facilitated by LoRaWAN technology for easy, wide-range network setup.

This specific RN320-BTH model excels with an embedded high-accuracy temperature and humidity sensor, critical data protection via a retransmission function that prevents sample drops, and permanent local storage on a microSD card. User interaction is enhanced by an E-paper display, loud buzzer (97dBA), and a 3-Color LED indicator (Best, Moderate, Bad), while quick access to comprehensive remote monitoring is ensured by simple QR code registration to the Radionode365 service. It also offers easy installation with a magnet and wall bracket.

General Features of RN320 Device

1.  Long Range Wireless / LoraWAN ®
2.  High Accuracy Temperature & Humidity Sensor

3.  E-Paper Display
4. Loud Buzzer 97dBA
5. 3 Color LED Indicator (Best, Moderate, Bad)
6. Long Battery Life (17000mAh)
7. MicroSD Card supported
8. Easy Installation with Magnet and Wall Bracket


Prerequisites

To continue with this guide, you will need the following:

• RN320-BTH Temperature & Humidity Cloud Data Logger
• LoRaWAN® gateway (e.g., Radionode LoRaWAN Gateway)
• Configured integration on a networks server and ThingsBoard
• Network Server account (The Things Stack)
• ThingsBoard account (PE account)

Device Connection: The Things Stack Community Setup

Register Application

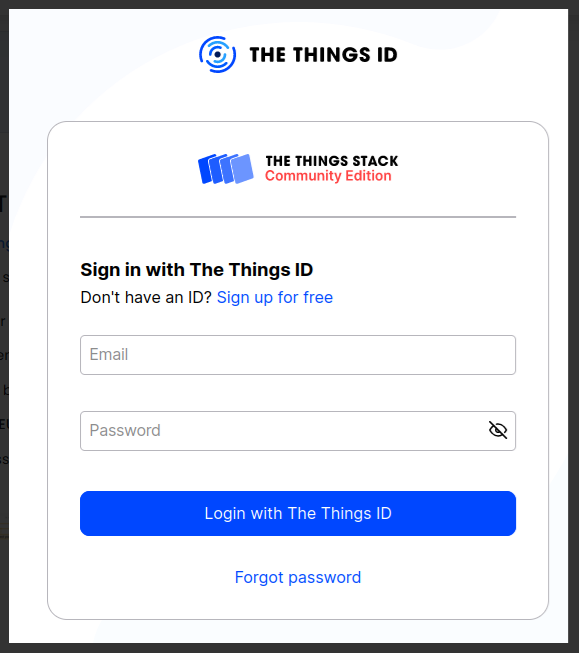

The first step is to register in the The Things Stack cloud console. Next, create an application in The Things Stack console.

Payload Decoder

1. Go to the console and open the Applications section.

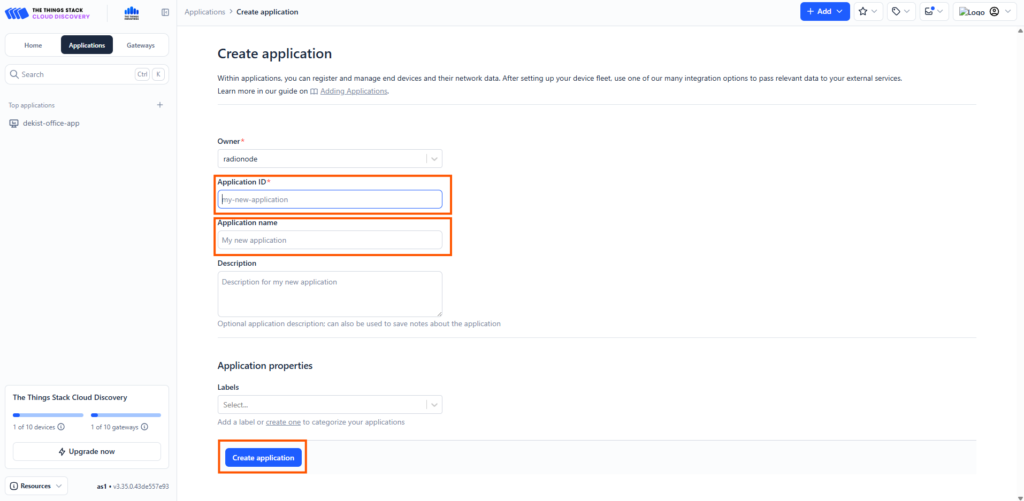

2. Press the Add application tab and then fill in the Application ID and Application Name.
3. Click Create application

To ensure successful data transmission, both the device and the network server must be correctly configured. Our device submits data in binary format.

In this documentation, we explain how to add the payload formatters in the TTN platform.

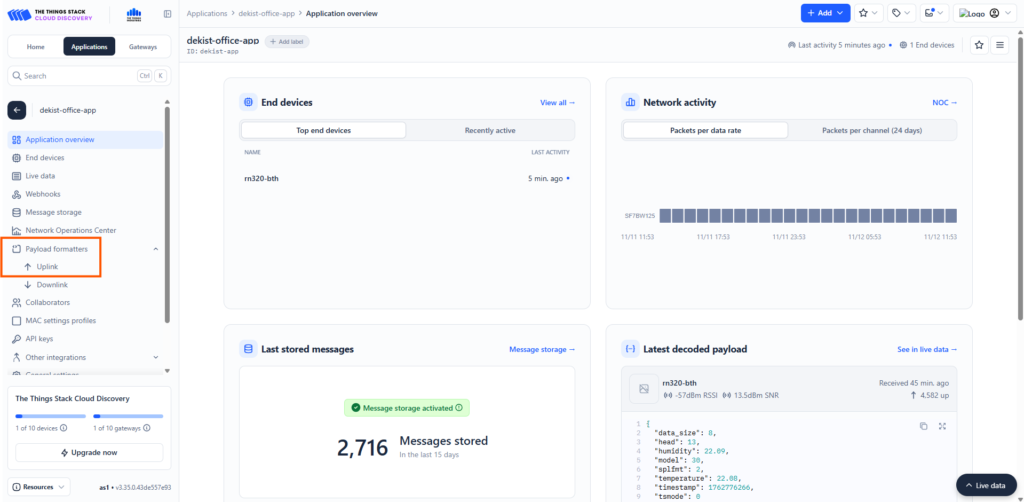

1. In the application tab, click on Payload formatters and select the Uplink option.
2. Copy and paste the payload formatter code below into the editor.


function decodeUplink(input) {
  const res = Decoder(input.bytes, input.fPort);
  if (res.error) {
    return { errors: [res.error] };
  }
  return { data: res };
}

function Decoder (bytes, port) {
  const readUInt8 = b => b & 0xFF;
  const readUInt16LE = b => (b[1] << 8) + b[0];
  const readInt16LE = b => {
    const ret = readUInt16LE(b);
    return (ret > 0x7FFF) ? ret - 0x10000 : ret;
  };
  const readUInt32LE = b => (b[3] << 24) + (b[2] << 16) + (b[1] << 8) + b[0];
  const readInt32LE = b => {
    const ret = readUInt32LE(b);
    return (ret > 0x7FFFFFFF) ? ret - 0x100000000 : ret;
  };
  const readFloatLE = b => {
    const buf = new ArrayBuffer(4);
    const view = new DataView(buf);
    for (let i = 0; i < 4; i++) view.setUint8(i, b[i]);
    return view.getFloat32(0, true); // ieee754 float
  };

  const head = readUInt8(bytes[0]);
  const model = readUInt8(bytes[1]);

  if (head === 11) {
    // Check-in frame
    const timestamp = readUInt32LE(bytes.slice(2, 6));
    const date = new Date(timestamp * 1000);
    const yyyy = date.getUTCFullYear();
    const mm = (date.getUTCMonth() + 1).toString().padStart(2, '0');
    const dd = date.getUTCDate().toString().padStart(2, '0');
    const verFormatted = parseInt(`${yyyy}${mm}${dd}`);
    const interval = readUInt16LE(bytes.slice(6, 8));
    const splrate = interval;
    const bat = readUInt8(bytes[8]);
    const millivolt = readUInt16LE(bytes.slice(9, 11));
    const volt = (millivolt / 1000).toFixed(3);
    const freqband = readUInt8(bytes[11]);
    const subband = readUInt8(bytes[12]);

    return {
      head,
      ver: verFormatted,
      interval,
      splrate,
      bat,
      volt,
      freqband,
      subband
    };
  }
  else if (head === 12 || head === 13) {
    // Sensor / Hold
    const tsmode = readUInt8(bytes[2]);
    const timestamp = readUInt32LE(bytes.slice(3, 7));
    const splfmt = readUInt8(bytes[7]);

    if (splfmt !== 2) {
      return { error: "Unsupported Sensor Data Format: " + splfmt };
    }

    const raw_size = 4;
    const data = bytes.slice(8);
    const ch_count = data.length / raw_size;
    const data_size = data.length;
    let offset = 0;
    let temperature = null, humidity = null;

    if (ch_count < 2) {
      return { error: "Unsupported Sensor Data Size:" + ch_count };
    }

    temperature = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
    if (temperature <= -9999.0) temperature = null;
    offset += raw_size;

    humidity = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
    if (humidity <= -9999.0) humidity = null;

    return {
      head,
      model,
      tsmode,
      timestamp,
      splfmt,
      data_size,
      temperature,
      humidity
    };
  }

  return { error: "Unsupported head frame: " + head };
}

End Device Registration in The Things Stack

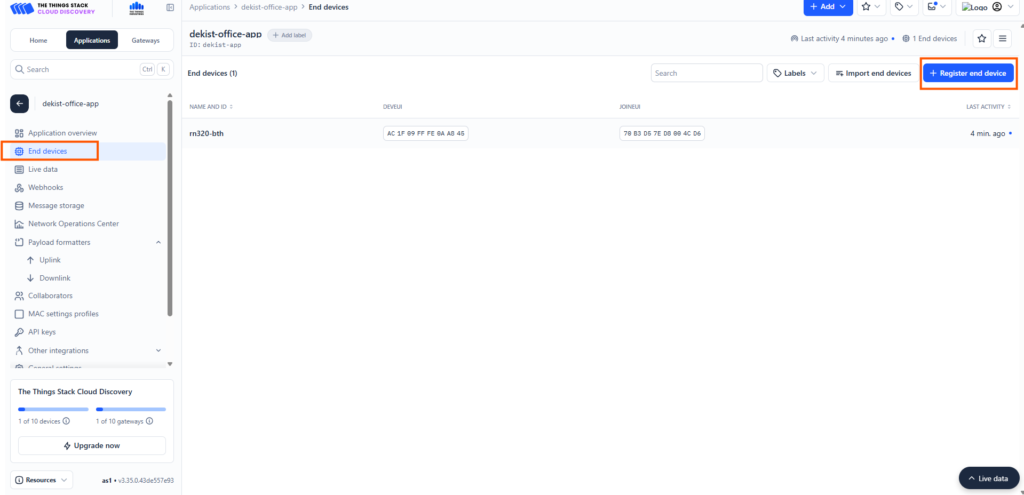

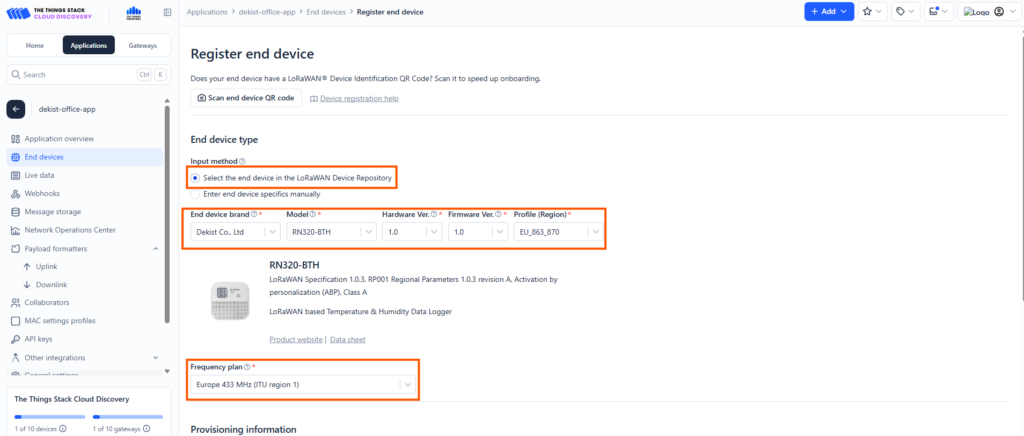

Next step is an End Device creation in the TTS. Open the Devices page and click the Register device tab.

To register the End Device, enter the following details:

• Input Method: Select the end device in the LoRaWAN Device repository (Radionode devices are already registered in the Thing Stack platform).
• End Device Brand: Choose the option Dekist Co.Ltd.
• Model: Choose among the Radionode LoRaWAN models.
• Choose the appropriate cluster where the device can be added.

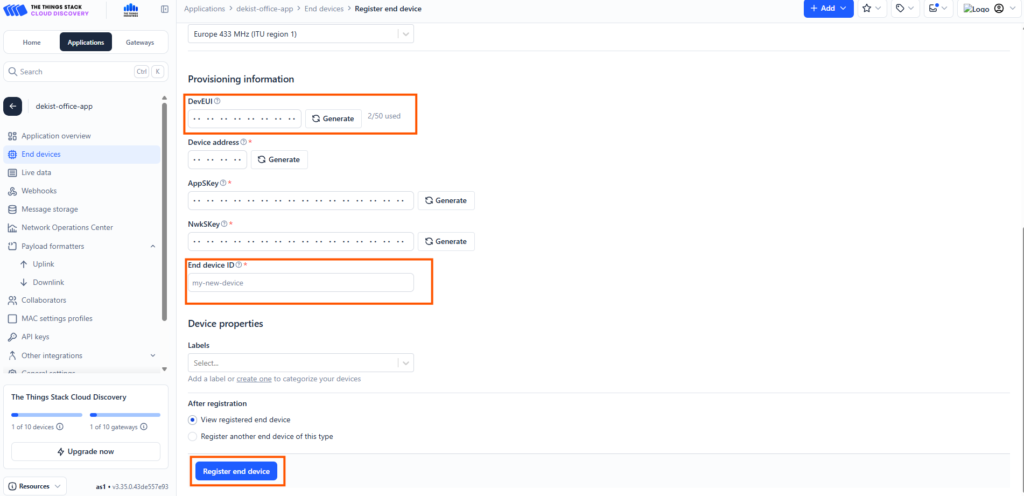

Next, we need to enter the DevEUI correctly in the slot provided there. You can find the DevEUI on the sticker on the side of the device.

After this, add an End Device ID in the slot given and complete the end device registration by clicking Register end device.

ThingsBoard Setup

1. Register an account in the ThingsBoard platform.
2. In the Integrations tab, start a new integration.

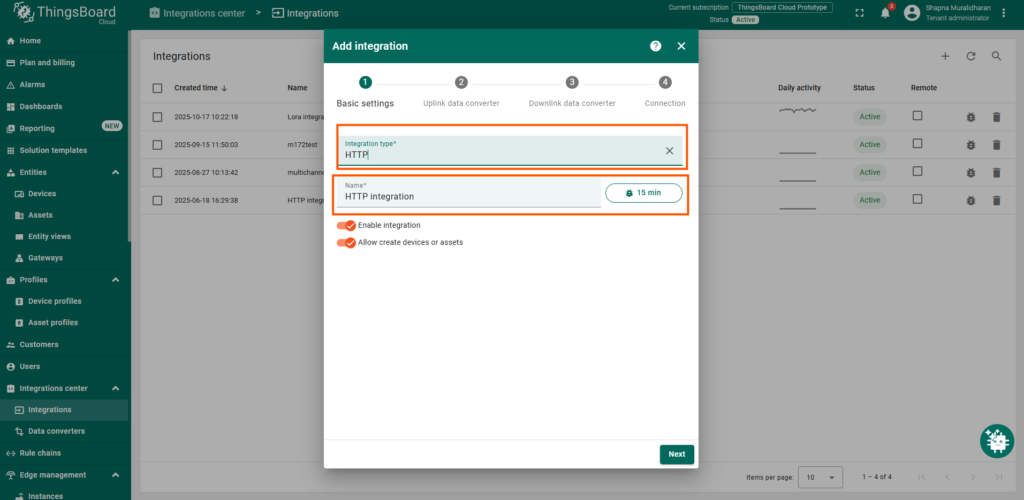

3. In the integration type option, select the HTTP option, as we will be receiving data from the webhooks created in TTS.
4. Then, add a name for the integration.

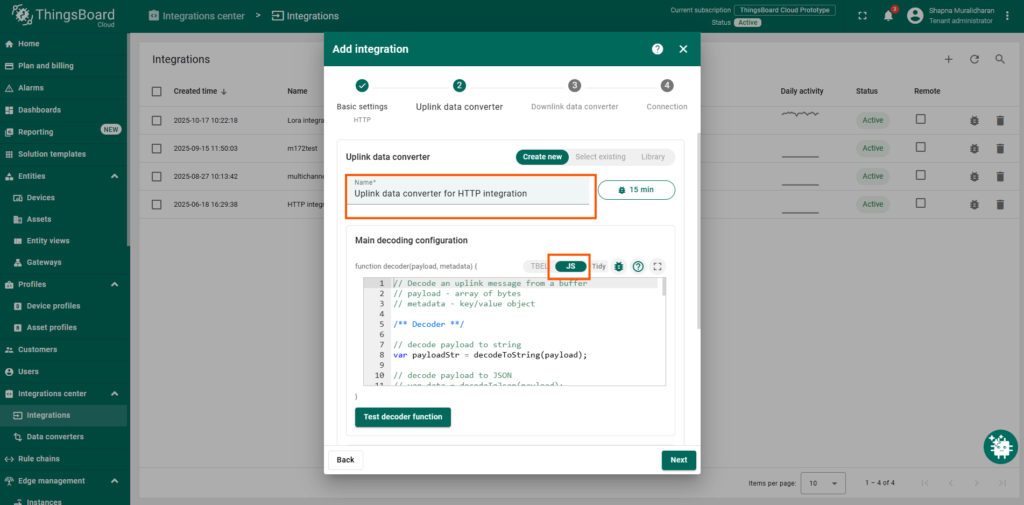

Then press the Next button. You need to add a name for your integration and toggle to the JS button in the decoder options, as shown in the figure below.

In the payload decoder for the message received from the network server, copy and paste the following JavaScript code:

function safeParse(payload) {
  try {
    if (typeof payload === 'string') {
      return JSON.parse(payload);
    } else if (Array.isArray(payload)) {
      // If payload is byte array (common in ThingsBoard tests)
      var text = String.fromCharCode.apply(null, payload);
      return JSON.parse(text);
    } else if (typeof payload === 'object' && payload !== null) {
      return payload;
    }
  } catch (e) {
    return {};
  }
  return {};
}

var data = safeParse(payload);

// Step 2: Extract decoded LoRaWAN data
var deviceName = data?.end_device_ids?.device_id || "Unknown_Device";
var applicationId = data?.end_device_ids?.application_ids?.application_id || "Unknown_App";
var decoded = data?.uplink_message?.decoded_payload || {};
var rx = (data?.uplink_message?.rx_metadata && data.uplink_message.rx_metadata[0]) || {};

// Step 3: Build telemetry
var telemetry = {};
if (decoded.temperature !== undefined) telemetry.temperature = decoded.temperature;
if (decoded.humidity !== undefined) telemetry.humidity = decoded.humidity;
if (decoded.model !== undefined) telemetry.model = decoded.model;
if (decoded.timestamp !== undefined) telemetry.timestamp = decoded.timestamp;
if (rx.rssi !== undefined) telemetry.rssi = rx.rssi;
if (rx.snr !== undefined) telemetry.snr = rx.snr;

// Step 4: Build final payload for ThingsBoard
var result = {
  deviceName: deviceName,
  deviceType: "RN320-BTH",
  telemetry: {
    ts: Date.parse(data?.uplink_message?.received_at || new Date().toISOString()),
    values: telemetry
  },
  attributes: {
    app_id: applicationId,
    f_port: data?.uplink_message?.f_port,
    frequency: data?.uplink_message?.settings?.frequency,
    spreading_factor: data?.uplink_message?.settings?.data_rate?.lora?.spreading_factor,
    gateway_id: rx?.gateway_ids?.gateway_id,
    dev_eui: data?.end_device_ids?.dev_eui
  }
};

return result;

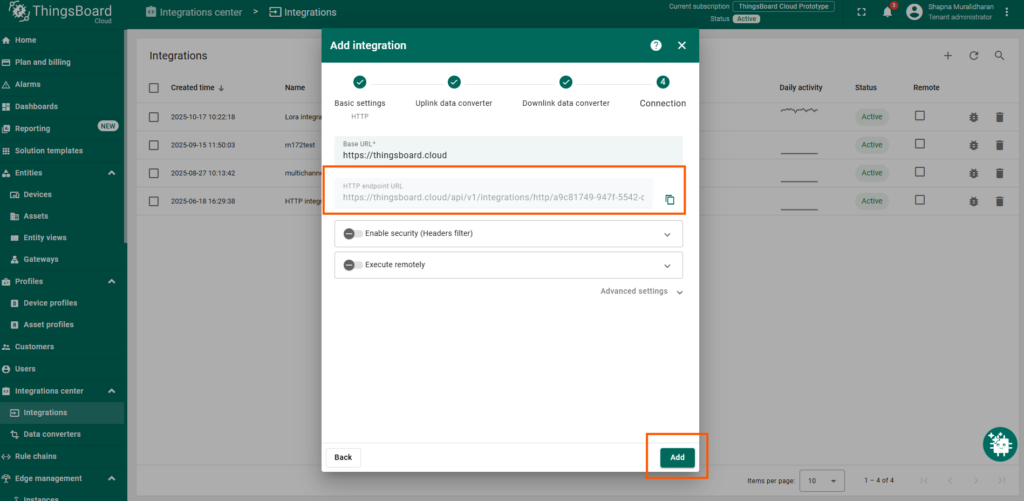

Then copy the HTTP endpoint URL and click Add to save the integration in the ThingsBoard cloud. We will use this endpoint in the webhook creation, so save it safely.

Creating a Webhook in The Things Stack Platform

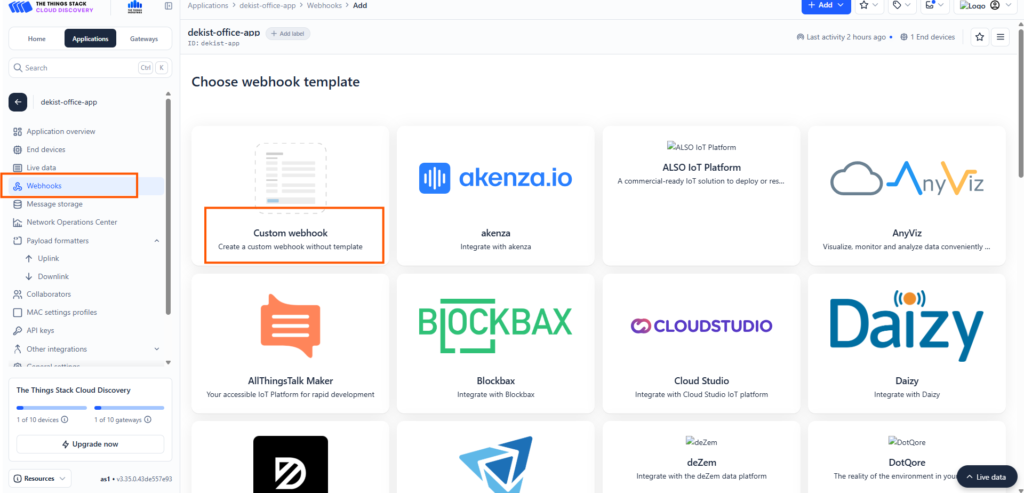

To create a webhook in the TTS platform, click the Webhook tab and select the Custom webhook option, as shown in the figure below.

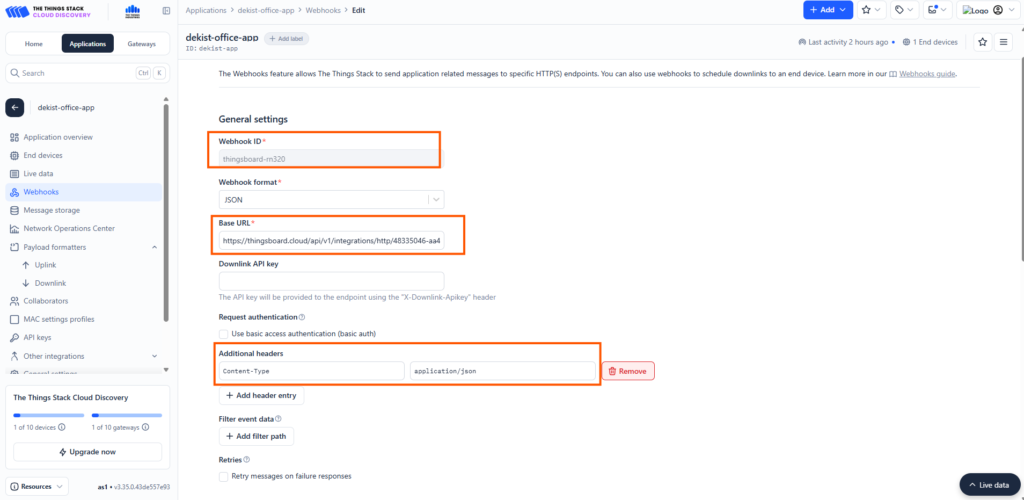

Then in the Webhook ID field, add a name for your webhook. In the Base URL tab, paste the endpoint URL you copied from the ThingsBoard cloud platform.

In the Additional header option, add Content-Type: application/json and save the webhook.

Now the communication will start between the network server and the ThingsBoard cloud platform to send data from your LoRaWAN devices to the ThingsBoard cloud.

Check Data on ThingsBoard

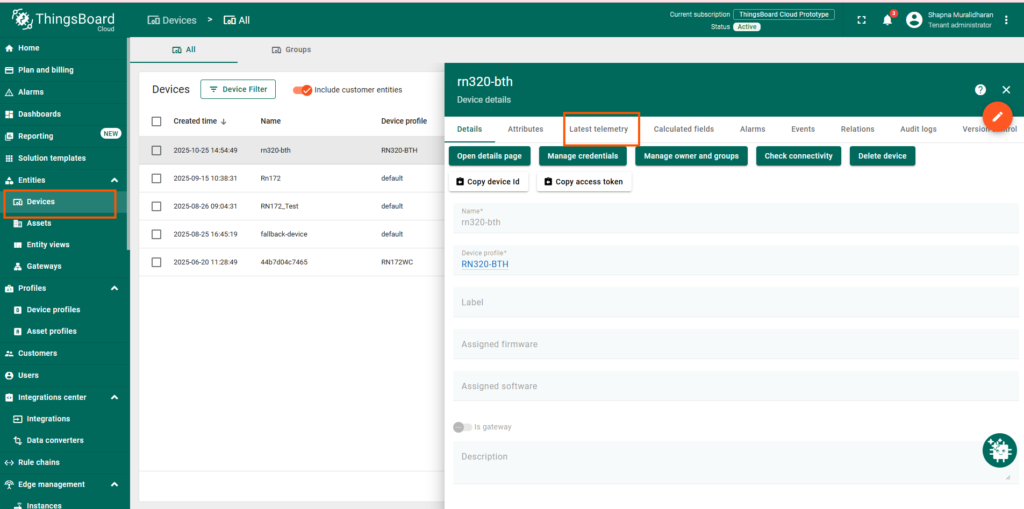

Once the device is connected, on the Devices page you can check the Latest telemetry.

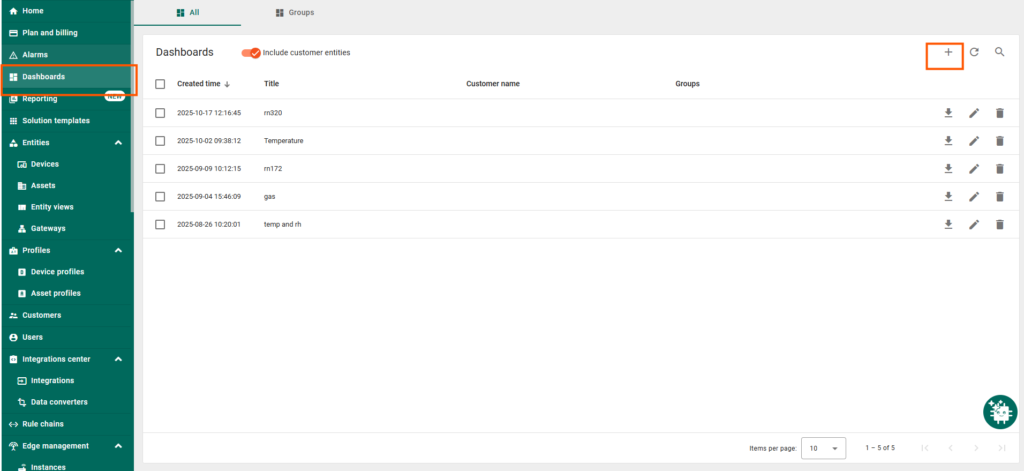

We can set up a dashboard by selecting the Dashboard option on the menu.

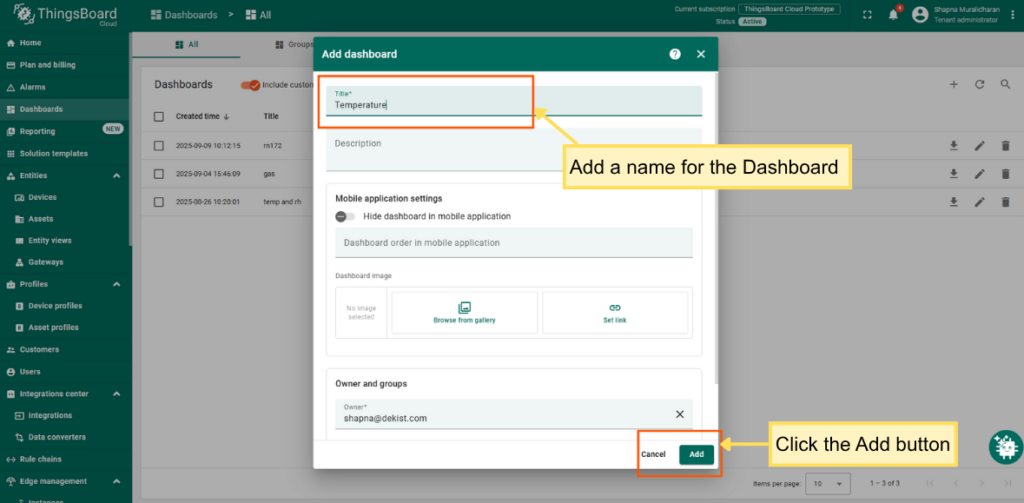

Enter a name for the Dashboard and then click the Add button.

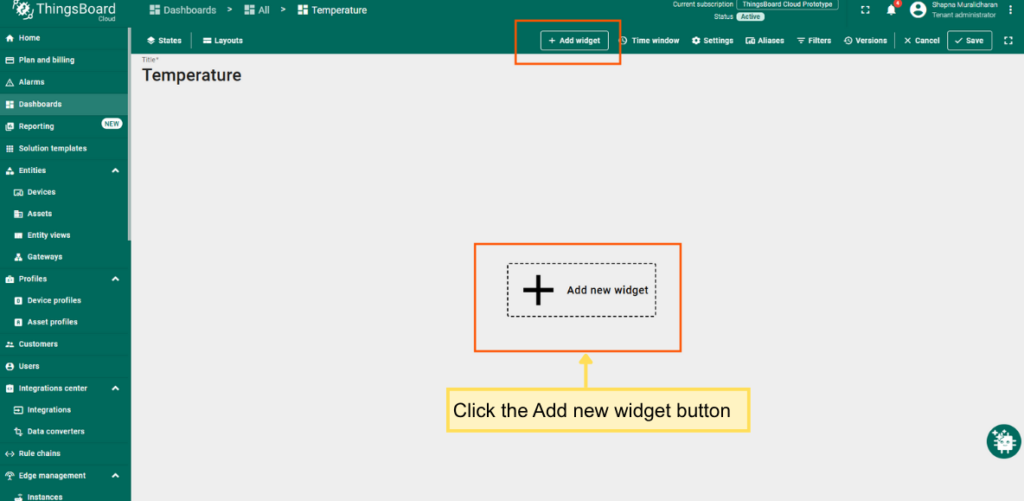

After creating the Dashboard, we can set it up by adding the widget of our choice.

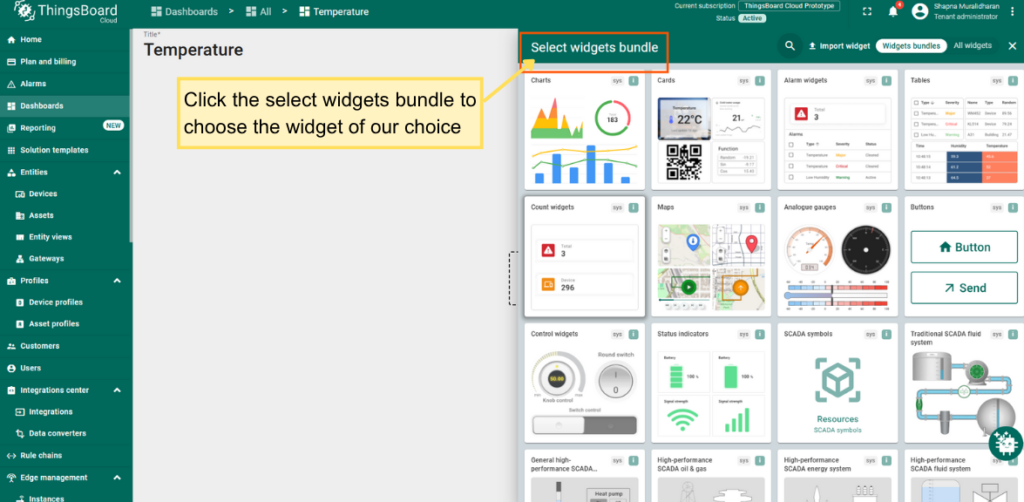

There are many options to choose. Once you decide on a widget, we can just click on that option. Here, for example, we are choosing the Charts option.

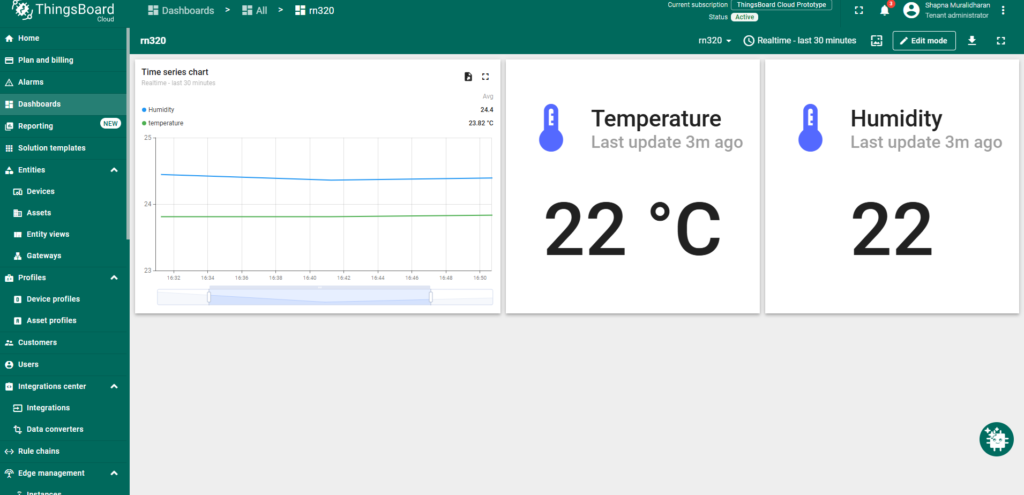

A sample of the dashboard created is shown in the picture below.
