Radionode RN320 LoRaWAN Sensor Integration Guide with thinger.io Platform

Introduction

This guide explains how to connect the RN-320 sensor series to the thinger.io platform.

The Radionode RN320 series is a robust, battery-operated wireless environmental sensor, professionally engineered for durability and extreme longevity, boasting an unbelievable 10-year battery life (RN320-BTH model with 17,000mAh) facilitated by LoRaWAN technology for easy, wide-range network setup.

This specific RN320-BTH model excels with an embedded high-accuracy temperature and humidity sensor, critical data protection via a retransmission function that prevents sample drops, and permanent local storage on a microSD card. User interaction is enhanced by an E-paper display, loud buzzer (97dBA), and a 3-Color LED indicator (Best, Moderate, Bad), while quick access to comprehensive remote monitoring is ensured by simple QR code registration to the Radionode365 service. It also offers easy installation with a magnet and wall bracket.

General Features of RN320 Device

• Long Range Wireless / LoraWAN ®
• E-Paper Display
• Loud Buzzer 97dBA
• 3 Color LED Indicator (Best, Moderate, Bad)
• Long Battery Life (17000mAh)
• MicroSD Card supported
• Easy Installation with Magnet and Wall Bracket

In this integration scenario we use the RN320-BTH series for the demo.

Prerequisites

To continue with this guide, you will need the following:

• RN320-BTH Temperature & Humidity Cloud Data Logger
• LoRaWAN® gateway (e.g., Radionode LoRaWAN Gateway)
• Configured integration on a networks server and ThingsBoard
• Network Server account (The Things Stack)
• Thinger.io account

Device Connection: The Things Stack Community Setup

Register Application

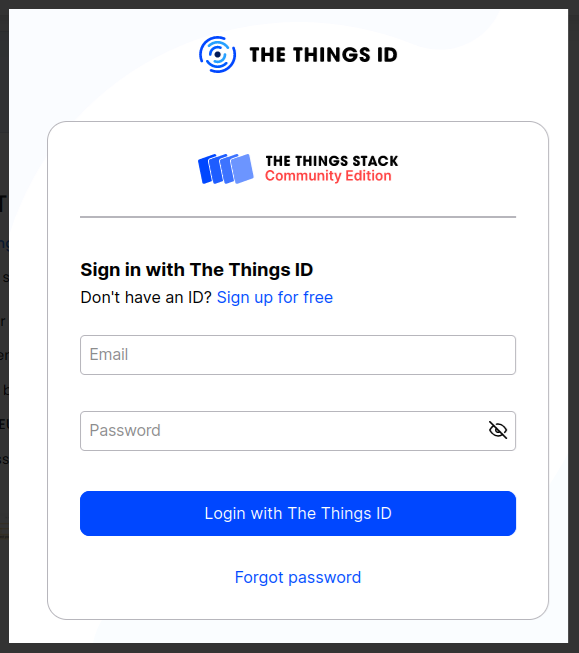

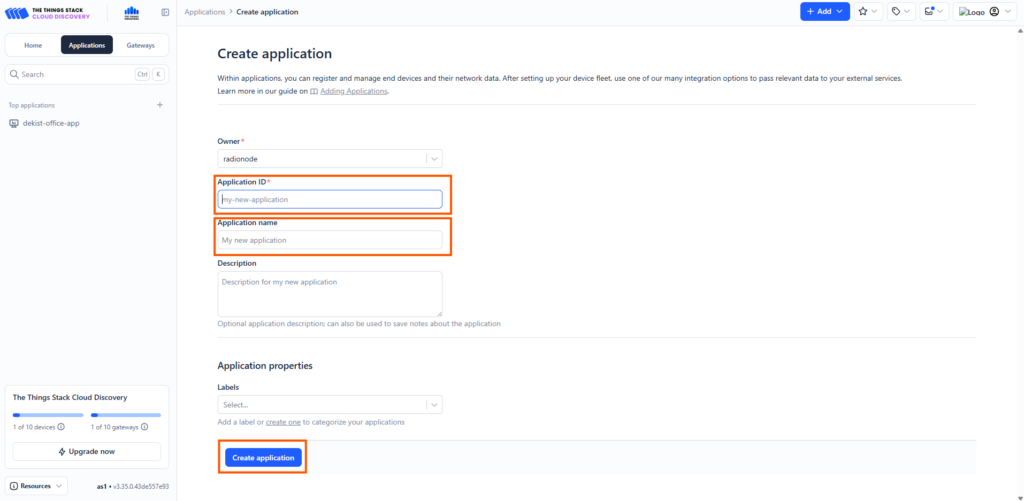

The first step is to register in the The Things Stack cloud console. Next, create an application in The Things Stack console.

1. Go to the console and open the Applications section.

2. Press the Add application tab and then fill in the Application ID and Application Name.
3. Click Create application.


Payload Decoder

To ensure successful data transmission, both the device and the network server must be correctly configured. Our device submits data in binary format.

In this documentation, we explain how to add the payload formatters in the TTN platform.

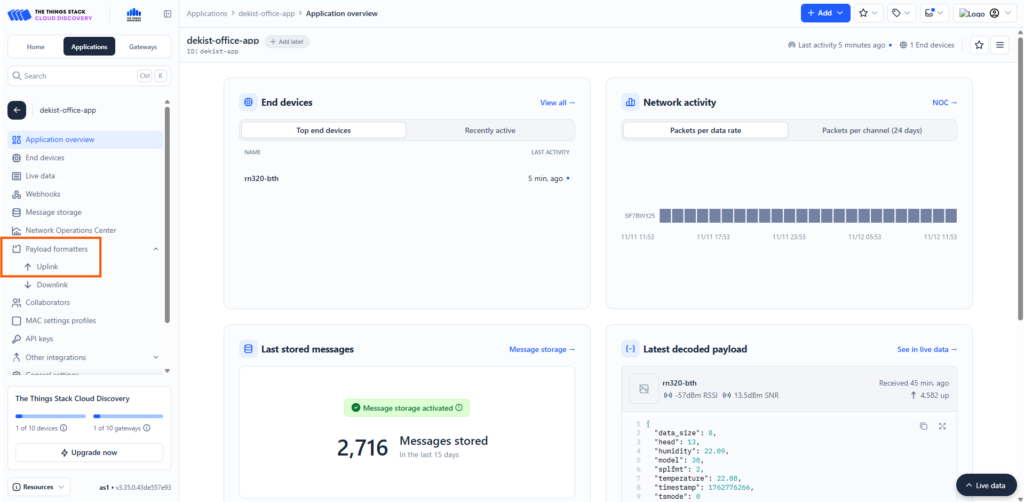

1. In the application tab, click on Payload formatters and select the Uplink option.
2. Copy and paste the payload formatter code below into the editor.


function decodeUplink(input) {
  const res = Decoder(input.bytes, input.fPort);
  if (res.error) {
    return { errors: [res.error] };
  }
  return { data: res };
}

function Decoder (bytes, port) {
  const readUInt8 = b => b & 0xFF;
  const readUInt16LE = b => (b[1] << 8) + b[0];
  const readInt16LE = b => {
    const ret = readUInt16LE(b);
    return (ret > 0x7FFF) ? ret - 0x10000 : ret;
  };
  const readUInt32LE = b => (b[3] << 24) + (b[2] << 16) + (b[1] << 8) + b[0];
  const readInt32LE = b => {
    const ret = readUInt32LE(b);
    return (ret > 0x7FFFFFFF) ? ret - 0x100000000 : ret;
  };
  const readFloatLE = b => {
    const buf = new ArrayBuffer(4);
    const view = new DataView(buf);
    for (let i = 0; i < 4; i++) view.setUint8(i, b[i]);
    return view.getFloat32(0, true); // ieee754 float
  };

  const head = readUInt8(bytes[0]);
  const model = readUInt8(bytes[1]);

  if (head === 11) {
    // Check-in frame
    const timestamp = readUInt32LE(bytes.slice(2, 6));
    const date = new Date(timestamp * 1000);
    const yyyy = date.getUTCFullYear();
    const mm = (date.getUTCMonth() + 1).toString().padStart(2, '0');
    const dd = date.getUTCDate().toString().padStart(2, '0');
    const verFormatted = parseInt(`${yyyy}${mm}${dd}`);
    const interval = readUInt16LE(bytes.slice(6, 8));
    const splrate = interval;
    const bat = readUInt8(bytes[8]);
    const millivolt = readUInt16LE(bytes.slice(9, 11));
    const volt = (millivolt / 1000).toFixed(3);
    const freqband = readUInt8(bytes[11]);
    const subband = readUInt8(bytes[12]);

    return {
      head,
      ver: verFormatted,
      interval,
      splrate,
      bat,
      volt,
      freqband,
      subband
    };
  }
  else if (head === 12 || head === 13) {
    // Sensor / Hold
    const tsmode = readUInt8(bytes[2]);
    const timestamp = readUInt32LE(bytes.slice(3, 7));
    const splfmt = readUInt8(bytes[7]);

    if (splfmt !== 2) {
      return { error: "Unsupported Sensor Data Format: " + splfmt };
    }

    const raw_size = 4;
    const data = bytes.slice(8);
    const ch_count = data.length / raw_size;
    const data_size = data.length;
    let offset = 0;
    let temperature = null, humidity = null;

    if (ch_count < 2) {
      return { error: "Unsupported Sensor Data Size:" + ch_count };
    }

    temperature = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
    if (temperature <= -9999.0) temperature = null;
    offset += raw_size;

    humidity = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
    if (humidity <= -9999.0) humidity = null;

    return {
      head,
      model,
      tsmode,
      timestamp,
      splfmt,
      data_size,
      temperature,
      humidity
    };
  }

  return { error: "Unsupported head frame: " + head };
}

End Device Registration in The Things Stack (TTS)

The next crucial step is End Device creation within The Things Stack (TTS).

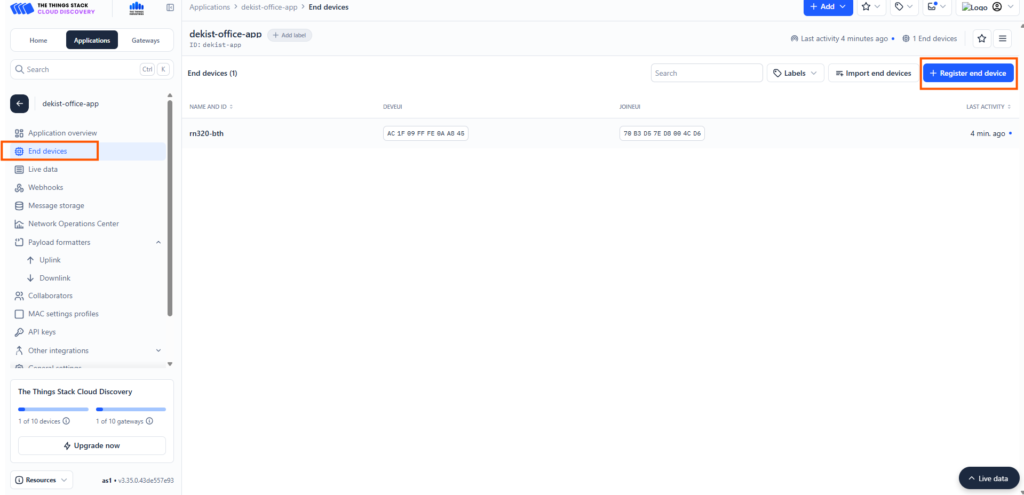

1. Open the Devices page in your TTS console.
2. Press the Register device tab.

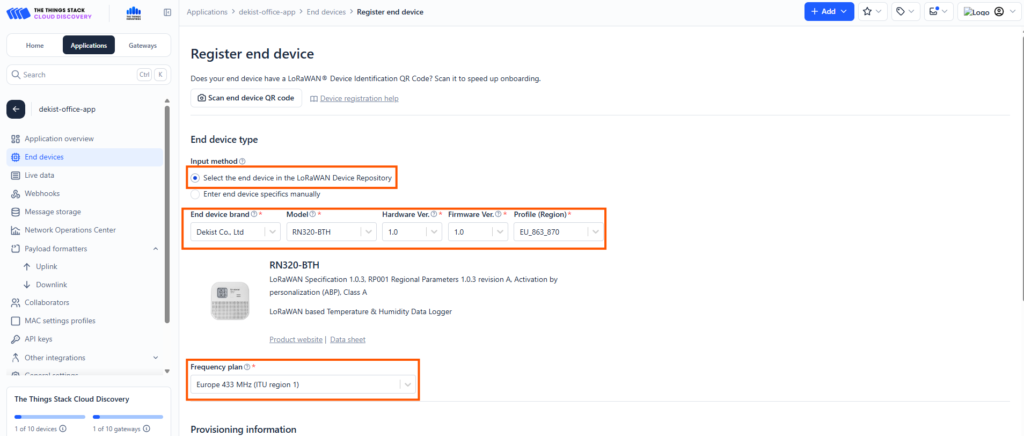

Enter End Device Details

To successfully register the End Device, enter the following details, as illustrated in the image below:

• Input Method: Select The end device in the LoRaWAN Device repository.
  > (Radionode devices are typically pre-registered in The Things Stack platform.)
• End Device Brand: Choose Dekist Co.Ltd.
• Model: Select the appropriate Radionode LoRaWAN model from the list.
• Cluster: Choose the cluster where this device should be added.

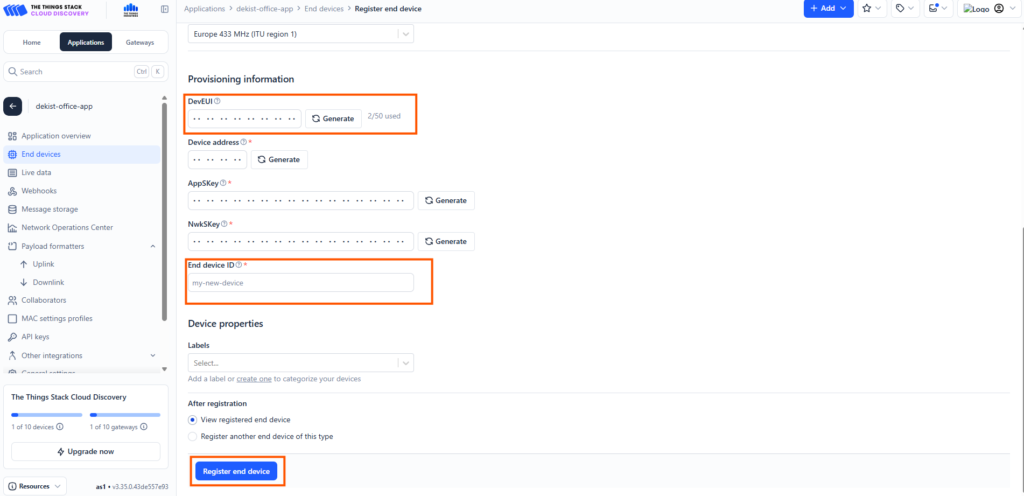

Enter Device Identifiers

Next, we need to correctly enter the DevEUI in the designated field.

• You can typically find the DevEUI printed on the sticker located on the side of the physical device.

After entering the DevEUI, proceed as follows:

1. Add a unique End Device ID in the slot provided.
2. Complete the end device registration process. Thinger.io Setup

1. Account Registration

First, register an account on the thinger.io platform.

2. Create the The Things Stack Plugin

The first step within Thinger.io is to create a plugin for The Things Stack platform:

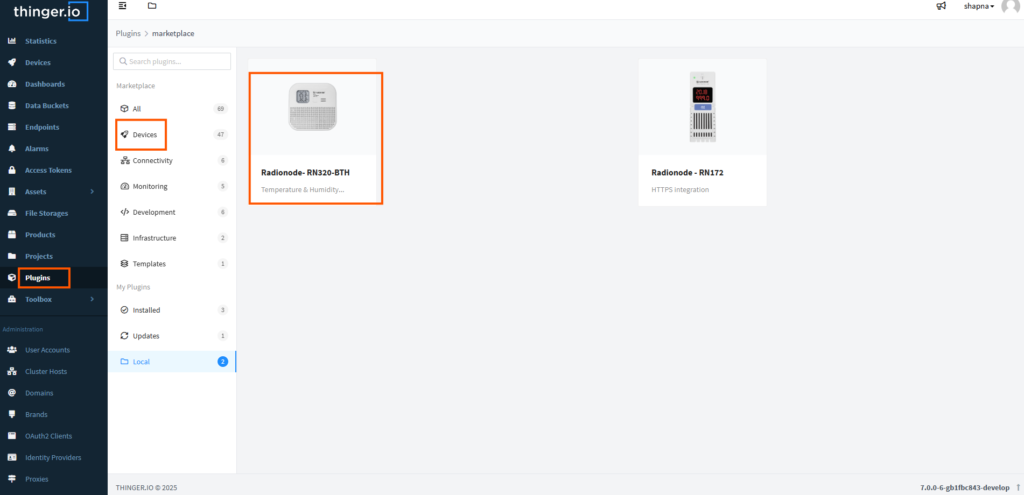

1. Navigate to the Plugins tab.
2. Just click the plugin then the device tab. There you can see the Radionode RM320-BTH image, as shown in the image below. There you can see the Radionode RM320-BTH image, as shown in the image below.

TTN Webhook Configuration

1. Log In and Select Application

First, log in to The Things Network (TTN) Console and select the target Application.

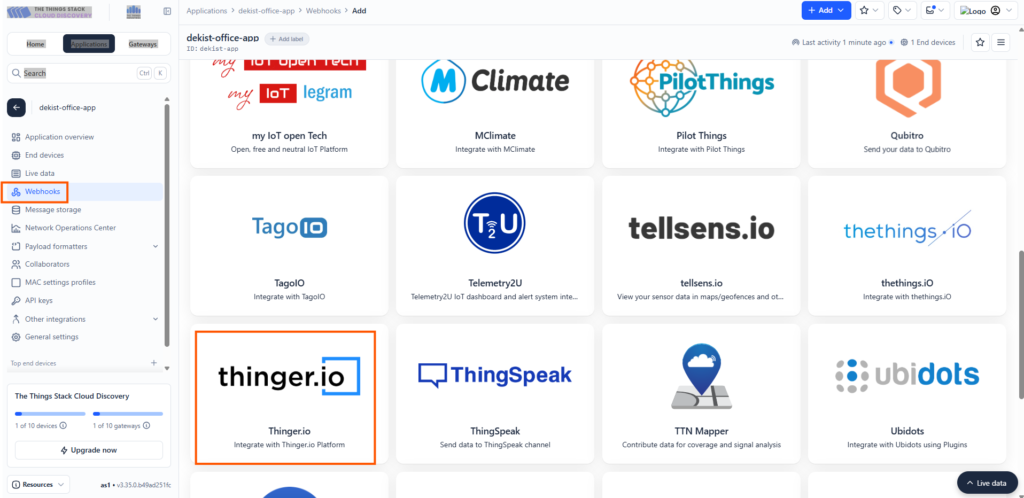

2. Add New Webhook

Navigate to the following section: Integrations $\rightarrow$ Webhooks, and then click Add Webhooks.

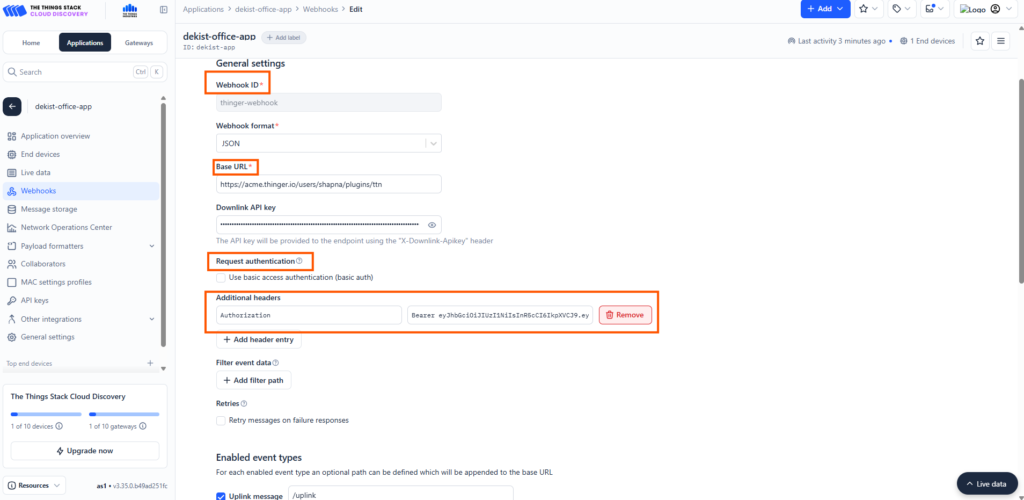

3. Complete the Webhook Form

• Choose the Thinger.io Template.
• Complete the form using the Webhook URL and TTN TOKEN you obtained from your Thinger.io plugin settings. Webhook Configuration Fields

Template Field	Value
Webhook ID	Your preferred webhook ID
Thinger.io instance	Your Thinger.io instance domain (e.g., acme.thinger.io or console.thinger.io)
Thinger.io user	Your Thinger.io username
Authorization Header	Your Thinger.io TTN API TOKEN
Plugin Endpoint	Plugin endpoint (leave default value if using this plugin)

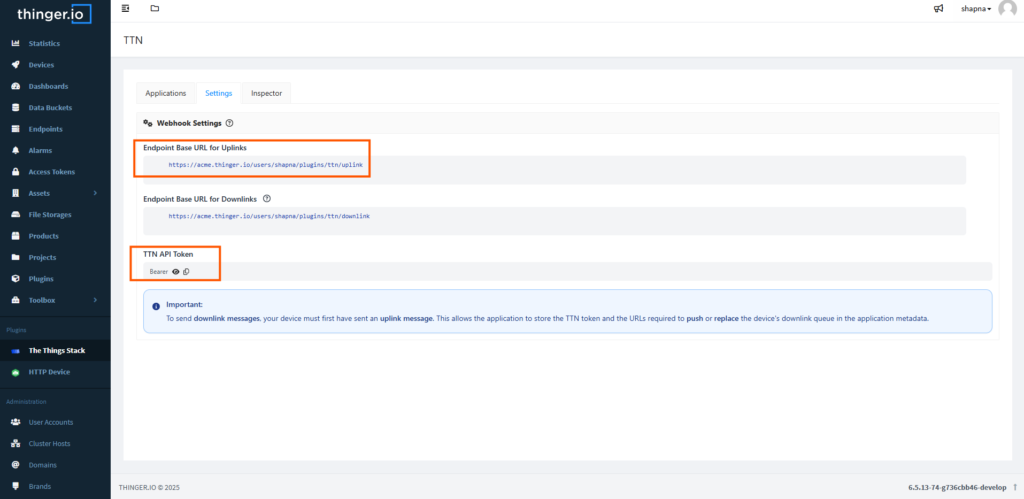

💡 Where to find the Token:
You can find your TTN API TOKEN in the plugin settings page, under the dedicated TTN API TOKEN field.

Just click the “copy” button and paste it into the Authorization Header field in the TTN Console.

Product Template in Thinger.io

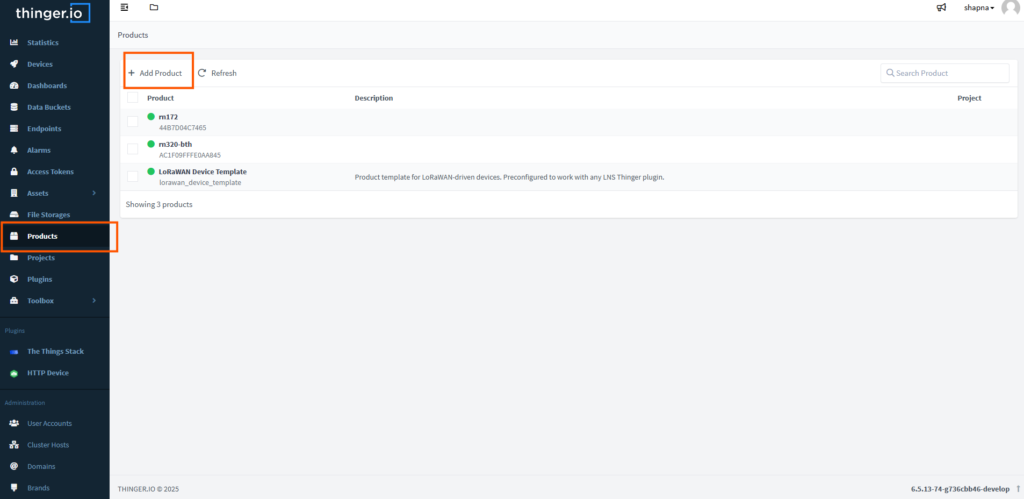

Creating a product template in Thinger.io

The next step is to create a product template in the platform for our RN320-BTH device.

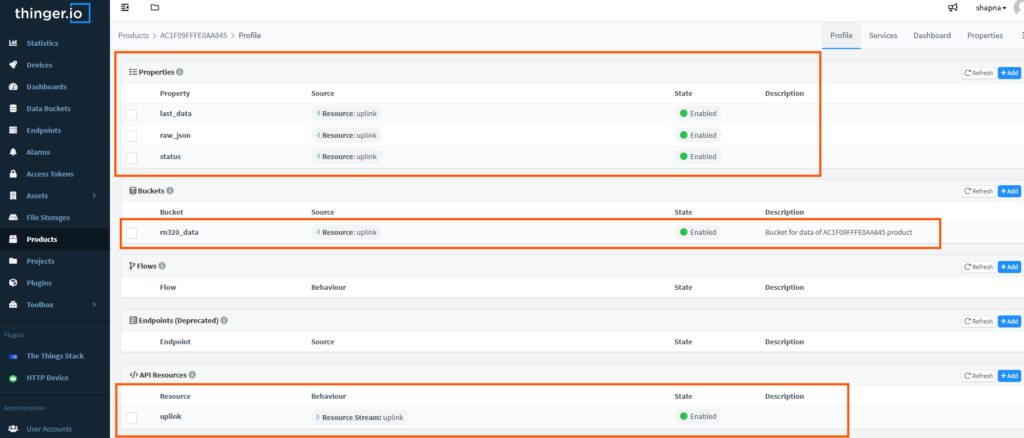

Do the settings in the product template similar to the Images shown below:

• Properties
• Buckets
• API resources

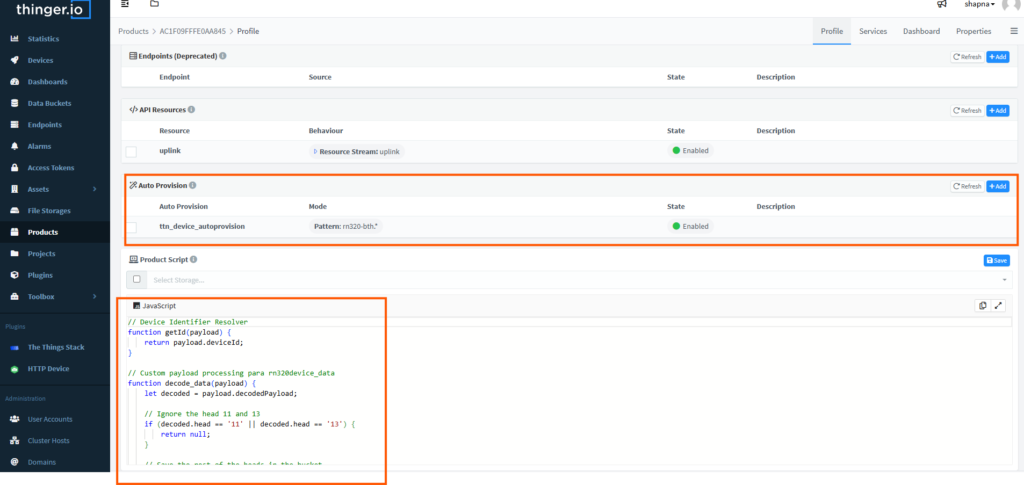

• Auto Provision
• Product Script

Add this javascript code in the product template

function getId(payload) {
    return payload.deviceId;
}

// Custom payload processing para rn320device_data
function decode_data(payload) {
    let decoded = payload.decodedPayload;

    if (decoded.head == '11' || decoded.head == '13') {
        return null;
    }
    return decoded;
}

function decodeHearbeatUplink(payload) {
  let decoded = payload.decodedPayload;
  if (payload.decodedPayload.head != '11') {
    return null;
  }
  return decoded;
}

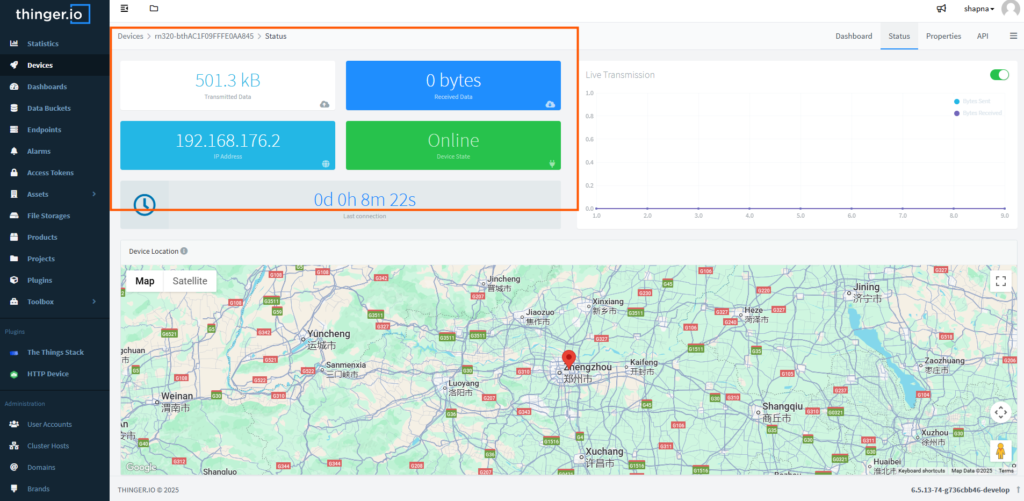

Once the communication is enabled, the device will be created as we have enabled auto-provisioning.

In the device settings, you can create a dashboard using the widgets options.

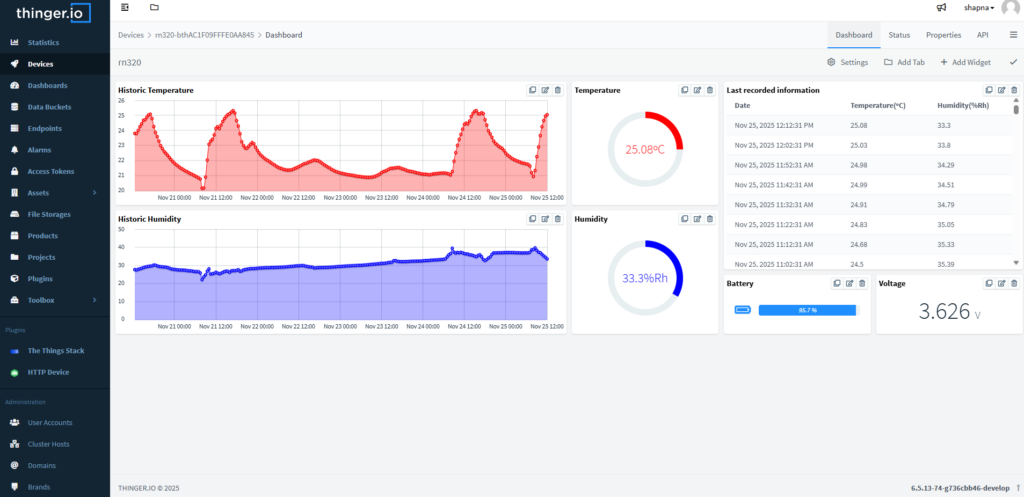

Here is a sample of the dashboard created in the thinger platform.
